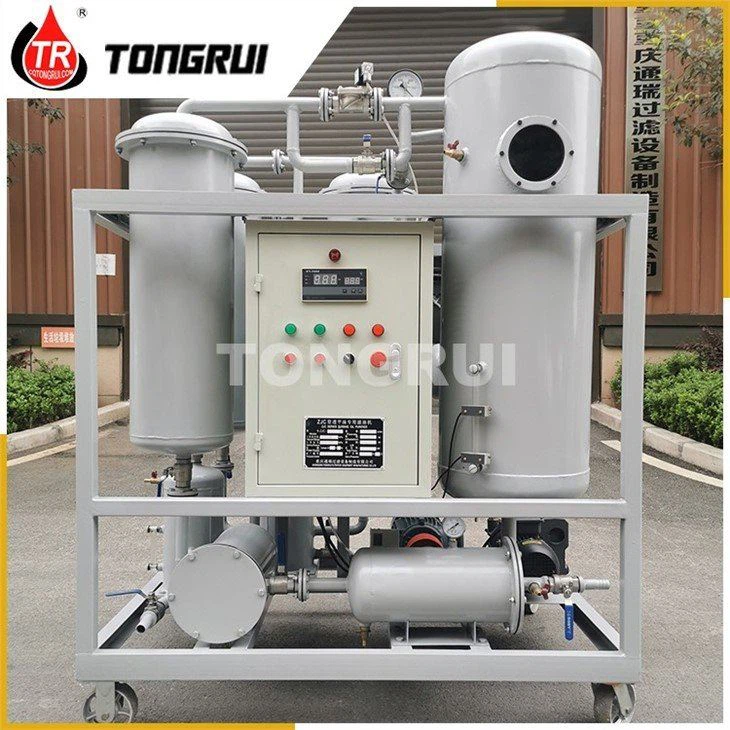

Turbine lwil oliv purifikateur

ZJC espesyal turbine lwil oliv purifikateur pou lwil oliv turbine se apwopriye pou pirifye nan lwil oliv turbine (lwil oliv turbine), lwil oliv lubrifyan ak lwil refwadisman ki retire yon gwo kantite imidite ak enpurte. Turbine lwil oliv purifikateur se yon ekipman endispansab pou plant elektrik ak estasyon énergie.

Voye rechèch

Dekri teren

Dimansyon aplikasyon

Karakteristik:

1) Bonjan lwil oliv -kapasite separasyon dlo, demulsification, gwo twou san fon -materyèl filtre presizyon nivo ka retire patikil amann nan lwil oliv.

2) gwo koule, efikasite pirifikasyon segondè, apwopriye pou pirifikasyon rapid nan lwil oliv nan sistèm gwo -kapasite.

3) Lwil osmoz inverse-separasyon dlo ak sistèm pou pirifye plis teknoloji evaporasyon rapid twa-dimansyon, milti-nivo lwil oliv-teknoloji separasyon dlo, byen vit separe dlo, gaz ak enpurte nan lwil oliv.

4) Machin sa a ekipe ak pwoteksyon presyon, chofaj otomatik kontwòl tanperati, otomatik separasyon dlo kondanse, ak drenaj pandan operasyon liy. Operasyon an se senp, san danje epi serye.

5) Sèvi ak -wo kalite lwil oliv-materyèl filtre separasyon dlo, li gen gwo lwil oliv -abilite separasyon dlo, rezistans korozyon, rezistans tanperati ki wo, segondè fòs mekanik, ka retire enpurte ak presizyon. , e li gen yon lavi sèvis long.

lubricant oil filtration machine

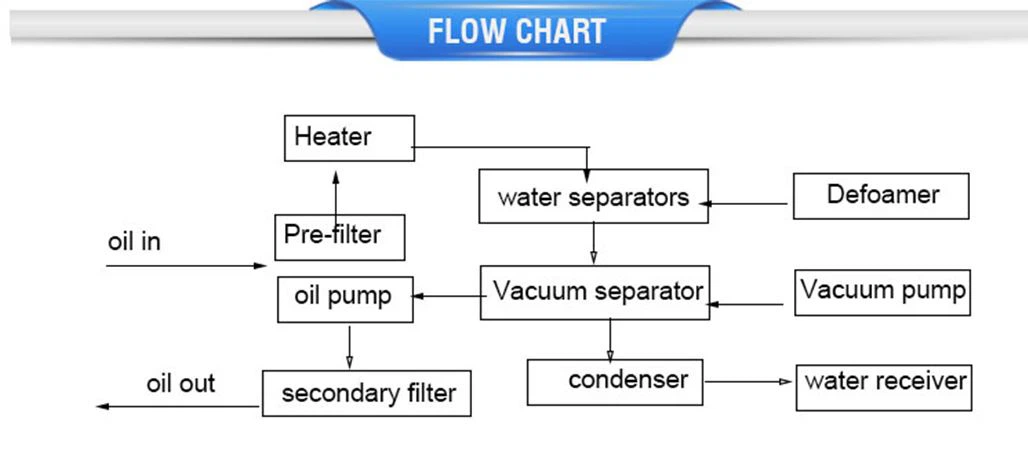

Prensip travay

When the turbine oil purifier works, the waste oil remove large capacity of impurities through special filters. Use a special water separator and personalized vacuum separator, which used the oil-wet hydrophobic technology and "cavitation" principle, the waste oil in a vacuum separator expanded to several hundred times larger than the original, and "cavitation"system also allows the oil evaporation surface area is increasing, and evaporated interface constantly updated, so that the water in the oil quickly vaporized under low heat, high vacuum, large surface, high pumping speed conditions exhausted by the vacuum system.

Dlo a ak gaz egzeyate nan pòsyon anwo a nan separateur vakyòm, apre de fwa refwadisman ak sistèm refwadisman dezimidifikasyon, epi finalman egzeyate nan ponp lan vakyòm.

Lwil oliv sèk la nan vakyòm separateur ki dewatered pa ponp vakyòm, epi yo vin presyon pozitif nan ponp lan lwil oliv. Apre filtraj amann, lwil la pwòp egzeyate soti nan valv priz apre refwadisman. Lè sa a, pwosesis la fini.

Lwil oliv apre resiklaj

portable vacuum turbine oil purifier (2)

Paramèt teknik

Atik		inite	ZJC-10		ZJC-20	ZJC-30	ZJC-50	ZJC-75	ZJC-100	ZJC-150	ZJC-200	ZJC-300
Pousantaj koule		L/H	600		1200	1800	3000	4500	6000	9000	12000	18000
Degre vakyòm		Mpa	-0.06 - -0.096
Travay presyon		Mpa	Mwens pase oswa egal a 0.3
Fòt gratis		H	Pi gran pase oswa egal a 4000
Tan travay kontinyèl		H	Pi gran pase oswa egal a 150
Tanperati travay		degre	40 - 70
Pouvwa chofaj		kW	9		18	30	36	60	72	108	144	144
Pouvwa total		kW	11.5		17.5	33	39.5	66	79	115	153.5	154
Dyamèt inletoutlet		DN	25		25	25	32	42	42	50	50	50
pwa		KG	500		530	570	780	800	960	1050	1150	1350
Dimansyon	L	mm	1300		1350	1450	1500	1500	1800	1800	1800	2500
	W	mm	1000		1000	1100	1150	1000	1500	1650	1500	1600
	H	mm	1450		1450	1500	1650	1750	1800	1900	2000	2200
Endèks lwil oliv apre tretman an
Kontni dlo				80ppm
Kontni gaz				Mwens pase oswa egal a 0.1 pousan
pwòpte				Less than or equal to 5µm（or as per requirement）
Valè demulsification				Mwens pase oswa egal a 10 min
